Plastic Trolley with POM roller for Poultry Processing Overhead Conveyor

1. Product Overview (General Information)

2. Professional Introduction – Precision Engineering for High-Throughput Poultry Lines

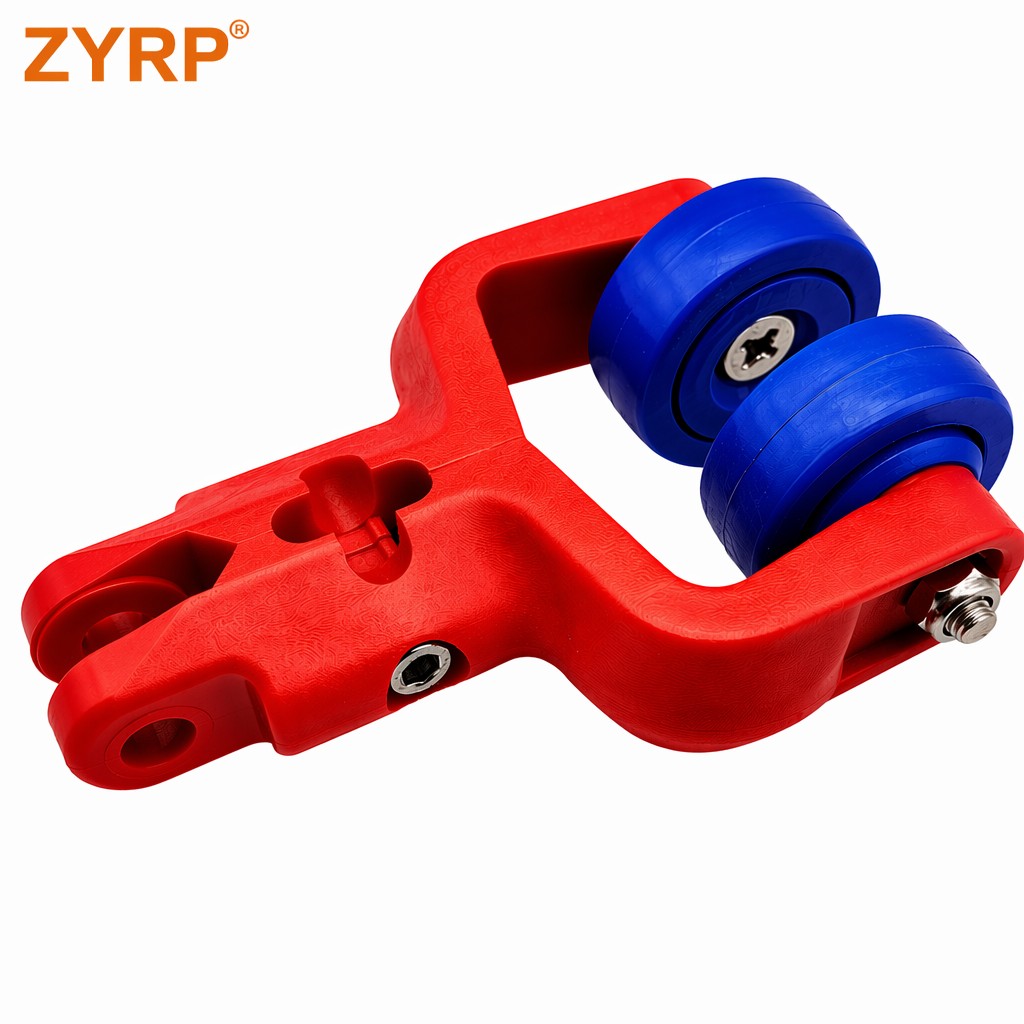

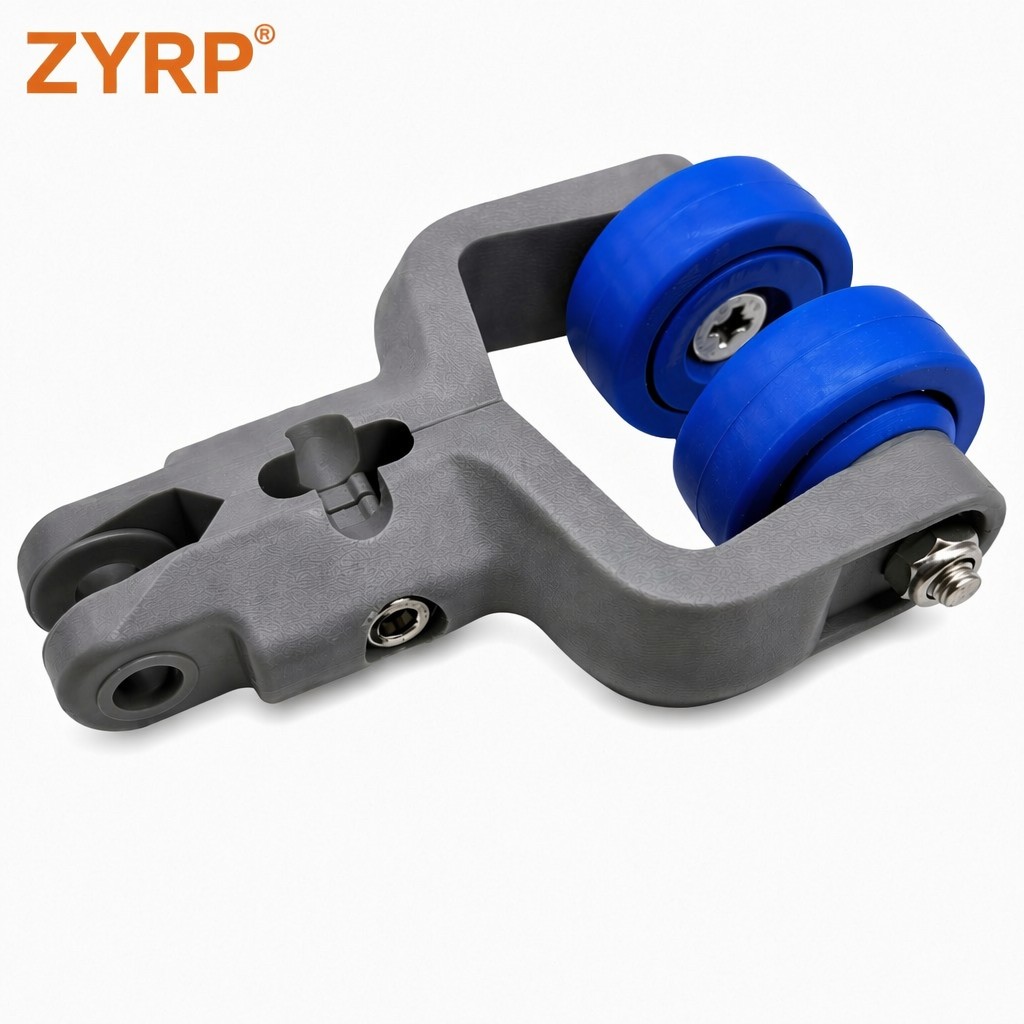

The ZYRP-TRP1009 plastic trolley with POM roller represents a precision-machined overhead conveyor trolley component, developed specifically for the rigorous mechanical demands of modern poultry processing conveyor trolley systems. Unlike generic cast or stamped alternatives, this POM roller trolley is manufactured with CNC-turned wheels and injection-molded PA brackets, ensuring sub-millimeter concentricity between the roller bore and the axle. This level of dimensional fidelity directly translates to reduced chain pitch elongation over time, as the trolley imparts consistent, non-pulsating motion to the universal 25.4×8 mm conveyor chain. For facilities operating at speeds exceeding 15 meters per minute, this precision becomes the differentiator between smooth, predictable throughput and premature wear of sprockets, track joints, and suspension brackets.

3. Technical Deep-Dive – POM Roller Friction Dynamics and Wear Resistance

The blue self-lubricating POM wheels on this plastic trolley with POM roller are not merely a drop-in replacement; they embody a carefully balanced tribological system. The POM grade selected by ZYRP incorporates a proprietary internal lubricant package — comprising PTFE microparticles and a silicon-based internal release agent — that migrates to the surface during rotation, creating a dynamic boundary film. This film reduces the coefficient of friction against the T-rail steel surface to 0.12–0.15 (under wet conditions), compared to 0.35–0.40 for unlubricated metal-on-metal contact. The resultant POM roller trolley requires no external grease, but more importantly, it prevents "stick-slip" phenomenon — a common cause of jerky carriage movement that stresses shackles and can dislodge birds from hooks. Field tests on a 500-meter continuous loop showed that after 8,000 operating hours, the POM roller's diameter loss remained under 0.15 mm, whereas standard acetal rollers lost up to 0.45 mm in similar conditions. This extended wear life means fewer replacement cycles and less downtime for re-tensioning, directly boosting the overall equipment effectiveness (OEE) of your overhead conveyor trolley network.

4. Track and Chain Interface – Optimized Tolerance Stack-Up

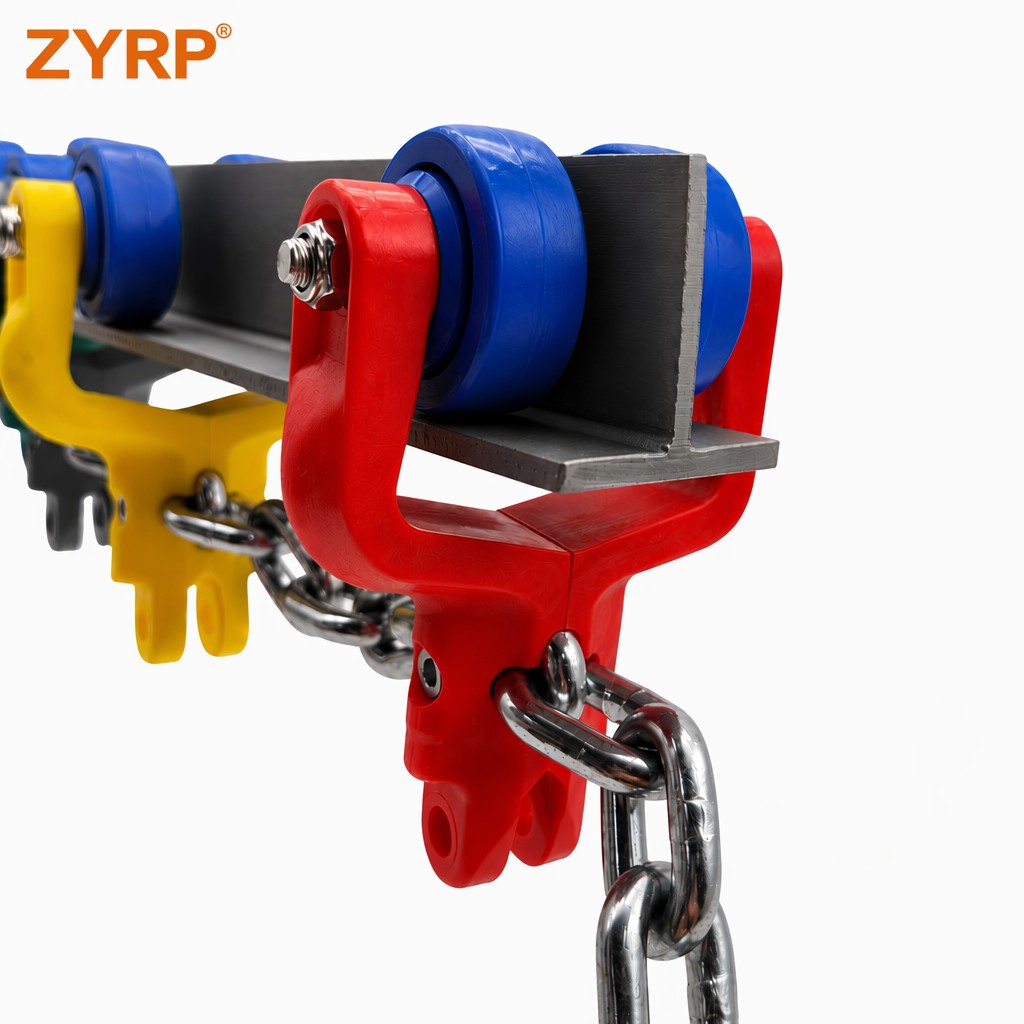

Successful integration of any poultry processing conveyor trolley hinges on proper fit with the T-rail (50×50×5 mm) and the drive chain. The ZYRP-TRP1009 design incorporates a rail-engaging profile that provides a controlled lateral float of 1.2 mm – ample to accommodate rail splices and thermal expansion, yet tight enough to prevent wheel edge-loading that causes premature bearing failure. The chain lug on the bracket is precisely offset to maintain correct chain pitch engagement, ensuring that the trolley's motion is perfectly synchronized with the conveyor drive. This attention to interface geometry means that when you deploy this plastic trolley with POM roller as a replacement, you will not experience the "slapping" noise or uneven acceleration that often plagues mismatched aftermarket components. Moreover, the SUS304 stainless steel axle pin is chamfered and roll-threaded, providing a positive lock that resists loosening under vibration—a common failure point in lesser designs.

5. Color-Coded Bracket System – Enhancing Operational Visibility and Zoning

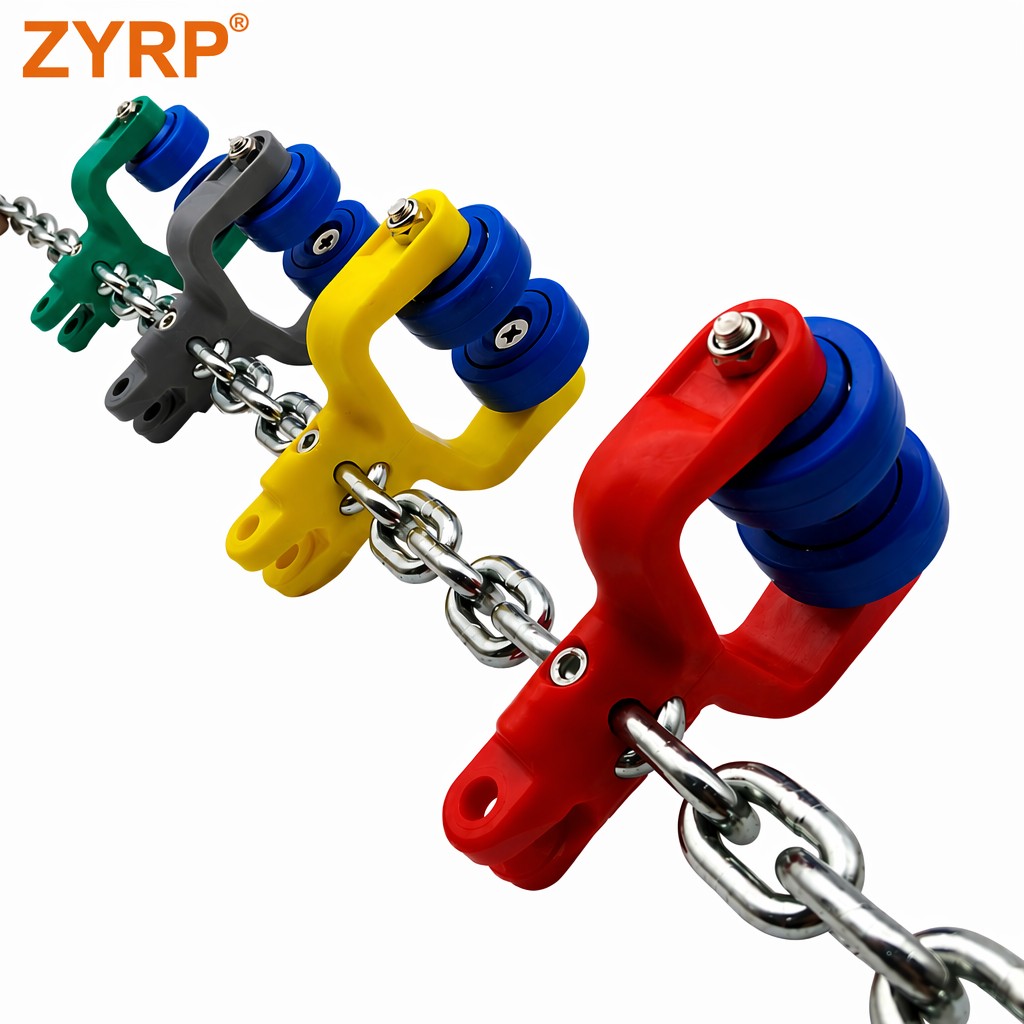

A distinctive feature of the ZYRP-TRP1009 POM roller trolley is the availability of bracket colors in Grey, Red, Green, and Yellow (in addition to the standard blue POM wheels). This is not merely aesthetic; it enables sophisticated line management strategies. For example, a facility can assign Red brackets to the evisceration line, Green to the giblet handling section, and Yellow to the final wash-chill tunnel. Maintenance crews can instantly identify which zone a trolley belongs to, simplifying preventive maintenance scheduling and enabling targeted condition monitoring. In the event of a contamination event, color zoning helps quickly isolate the affected conveyor segment, reducing product recall scope. The pigments used are UV-stabilized and fade-resistant, maintaining their vividness after repeated exposure to peracetic acid fog and high-intensity LED lighting typical of modern inspection areas. This system-level thinking elevates the overhead conveyor trolley from a simple mechanical part to a strategic operational tool.

6. Customization and OEM Services – Tailored to Specific Line Configurations

While the standard ZYRP-TRP1009 plastic trolley POM roller is dimensionally compatible with the vast majority of T-track systems, ZYRP recognizes that some processing lines feature non-standard rail heights, unique shackle mounting points, or specialized cleaning regimes. The company offers comprehensive customization options: bracket thickness can be adjusted to accommodate heavier bird weights (up to 8 kg per carrier), wheel durometer can be modified (from Shore D 80 to 90) for softer or harder rolling resistance, and alternative colors beyond the standard four are available for large-volume orders. For greenfield projects or major line retrofits, ZYRP's engineering team can collaborate with your integrators to produce a dedicated poultry processing conveyor trolley variant with bespoke axle lengths or integrated scraper blades for sticky residue removal. All custom orders are supported by full dimensional reports and material certification, ensuring traceability and compliance with your internal quality standards.

7. Load Handling and Dynamic Stability

The reinforced PA Nylon bracket of this overhead conveyor trolley is engineered with finite element analysis (FEA)-optimized ribbing to distribute compressive and shear forces evenly across the T-rail. The result is a static load capacity of 120 kg per pair, with a dynamic working load of 50 kg at continuous operation – more than sufficient for even the heaviest turkey or duck suspension. The low center of gravity, combined with the wide wheelbase (overall top width of 91 mm), ensures that the trolley remains stable during incline/decline transitions and around tight radius bends (minimum 1.5 m). This stability reduces lateral sway of the suspended carcasses, preventing collision with adjacent shackles or line equipment—a frequent source of product damage and line jams in high-density processing setups. Operators will notice smoother starts and stops, as the POM roller trolley exhibits low break-away torque, reducing the initial surge load on the drive motor and prolonging gearbox life.

8. Supply Chain Reliability and Technical Support

With a minimum order quantity of 500 pairs, the ZYRP-TRP1009 plastic trolley with POM roller is positioned for both direct factory supply and distribution partnerships. All units are packed in moisture-barrier cartons and secured on recyclable plastic pallets, eliminating the risk of wood splinter contamination—a critical consideration for export to markets with strict biosecurity requirements. ZYRP maintains a buffer stock of commonly specified variants, enabling emergency shipments within 48 hours for urgent breakdown situations. Technical documentation, including installation torque specifications, recommended inspection intervals, and bearing clearance checklists, accompanies every shipment. For large-scale deployment, ZYRP offers on-site training sessions (via remote video support) to ensure your maintenance team can properly diagnose and replace these poultry processing conveyor trolley components, maximizing the return on your capital investment.

9. Contact Information

Hebei Zunyan Technology Co., Ltd.

Professional Manufacturer & Supplier of Poultry Processing Spare Parts

Email: [email protected]

Precision in Motion – Reliable Performance for Every Processing Stage.
