Universal Fit Poultry Overhead Conveyor Trolley for Chicken Suspension – T-Rail System

General Information

Professional Description – Compact Design with Enhanced Load Capacity

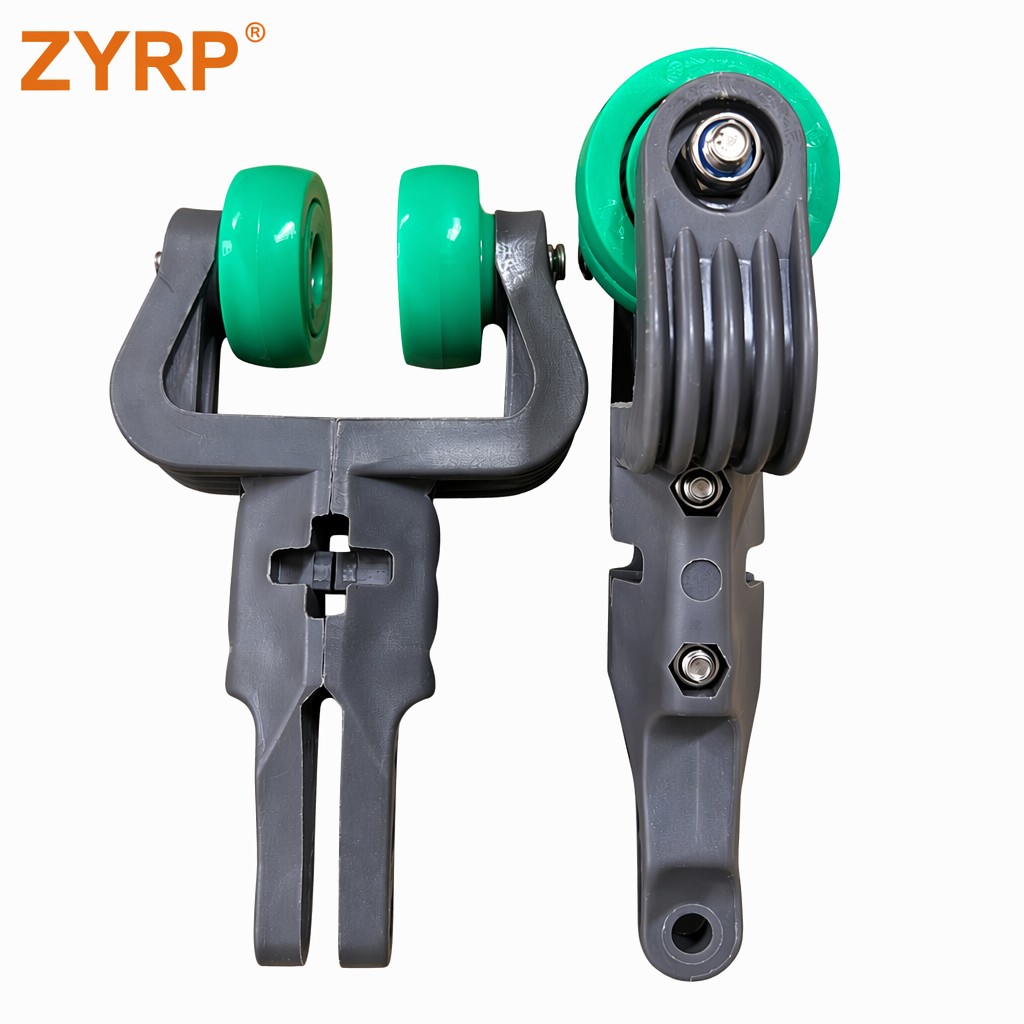

The ZYRP-TRP1003 poultry overhead conveyor trolley is a precision-engineered chicken suspension trolley distinguished by its compact overall dimensions — 150mm total height and 102mm outer width — combined with a reinforced bracket design that delivers exceptional load capacity in a space-optimized footprint. This T-rail conveyor system component is specifically tailored for processing lines where overhead clearances are limited, multi-level conveyor systems require reduced vertical profiles, or tight-radius curves demand a narrower trolley stance to prevent rail-side scuffing. The plastic trolley's compact geometry enables closer shackle spacing, increasing line density without extending rail length — a critical advantage for facilities seeking to maximize throughput within existing building footprints.

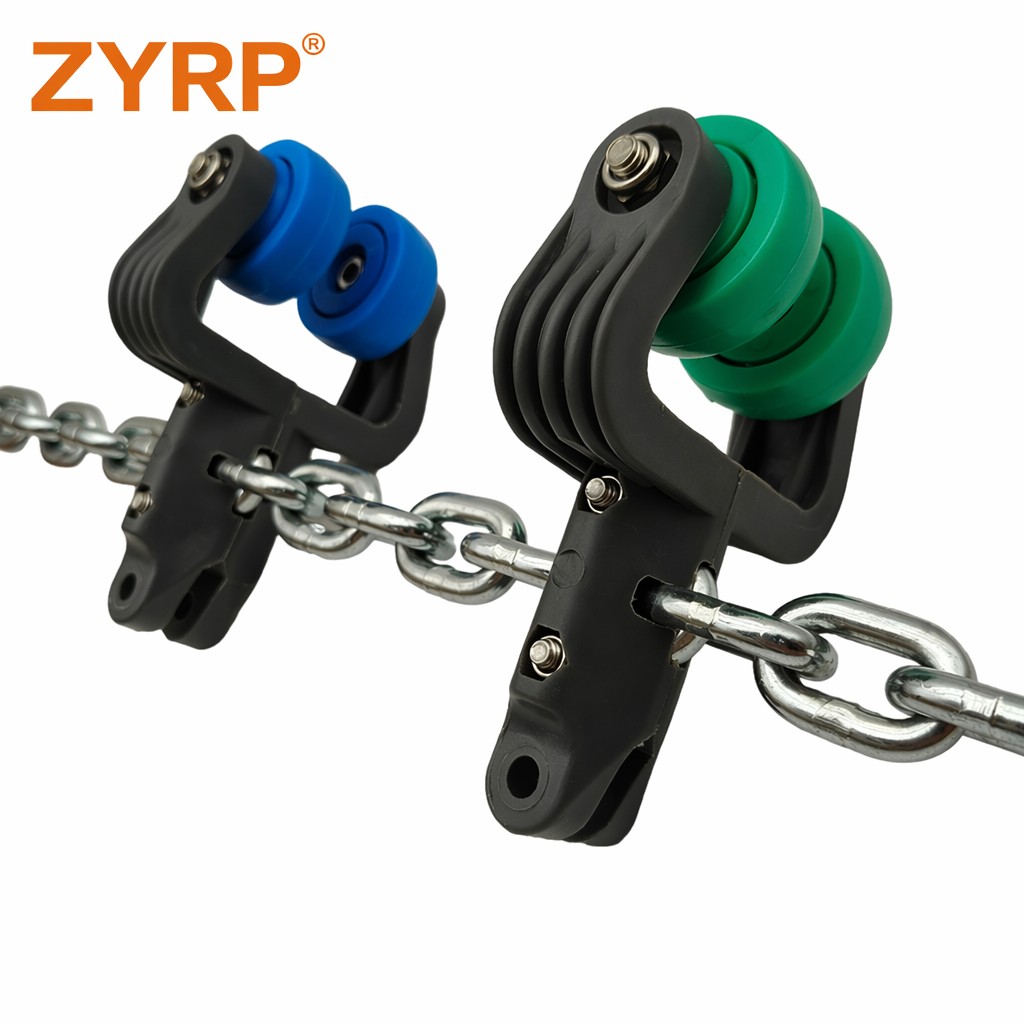

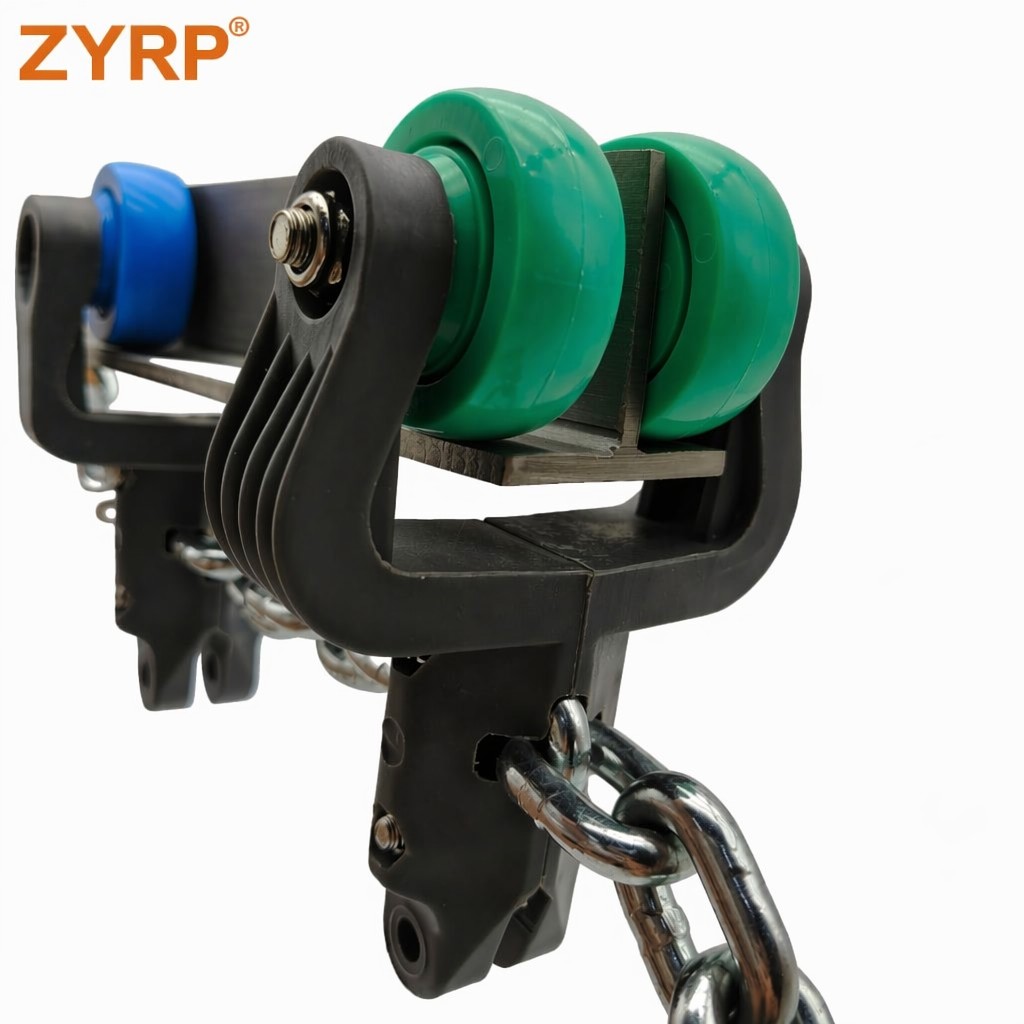

Manufactured with high-strength PA nylon brackets and self-lubricating POM wheels, the ZYRP-TRP1003 delivers the durability and low-friction performance expected of a premium poultry overhead conveyor trolley, while its reinforced bracket architecture provides 15–20% greater impact resistance than standard designs of comparable size. This extra robustness is particularly valuable in high-speed evisceration and cut-up sections where trolleys experience repeated shock loads from automated transfer mechanisms and high-frequency start-stop indexing. The chicken suspension trolley maintains full compatibility with standard T-Track 50x50x5mm rails and universal 25.4x8mm conveyor chains, enabling seamless integration into existing infrastructures without costly modifications. Backed by CE, RoHS, and SGS certifications, the ZYRP-TRP1003 is a versatile, cost-effective solution for processors seeking to optimize line layout and improve operational reliability in space-constrained or high-load environments.

Compact Dimensions – Enabling High-Density Line Configurations

The carefully chosen dimensions of the ZYRP-TRP1003 T-rail conveyor system trolley — 150mm total height and 102mm outer width — are not arbitrary; they are the result of extensive field analysis of common conveyor layout constraints. Many older poultry plants, as well as facilities with mezzanine-level installations, operate with overhead clearances that preclude the use of taller or wider trolleys. The poultry overhead conveyor trolley's reduced vertical profile allows it to pass through lower-clearance zones without modification, while its narrower stance enables smoother negotiation of curves with radii as small as 1.2 meters — a 20% improvement over standard-width trolleys. The plastic trolley achieves this compactness without compromising the wheel diameter (Φ43mm) or rail engagement depth, ensuring that running characteristics remain consistent with larger trolley models. The chicken suspension trolley's narrow stance also reduces lateral sway during high-speed transport, contributing to more stable product positioning for automated cutting and weighing stations.

Reinforced Bracket – Enhanced Durability for High-Impact Zones

The bracket of the ZYRP-TRP1003 poultry overhead conveyor trolley incorporates a reinforced design that significantly increases its resistance to impact and fatigue stresses. The PA nylon material is molded with additional ribbing at the axle mounting points and the top suspension lug — areas that experience the highest stress concentrations during operation. This T-rail conveyor system bracket also features a thicker cross-section in the central span (4.0mm versus the 3.0mm typical of standard trolleys), providing greater bending stiffness without adding excessive weight. The reinforced design has been validated through finite element analysis (FEA) and proven to withstand peak impact loads of up to 150 kg — well above the 80–100 kg capacity of standard alternatives. This extra margin is critical in automated portioning lines where high-speed shuttle mechanisms can momentarily impart significant dynamic forces to the trolley. The plastic trolley bracket also incorporates an integrated wear strip at the chain-engagement lug, extending the service life of this high-wear interface. For facilities processing heavier birds (ducks, turkeys) or operating at elevated line speeds, the reinforced chicken suspension trolley provides the structural confidence required for uninterrupted high-volume production. Despite its enhanced durability, the bracket maintains the smooth, non-porous surface finish that facilitates rapid cleaning and sanitation — a hallmark of ZYRP's poultry overhead conveyor trolley design philosophy.

Self-Lubricating POM Wheels – Optimized Friction for Compact Geometry

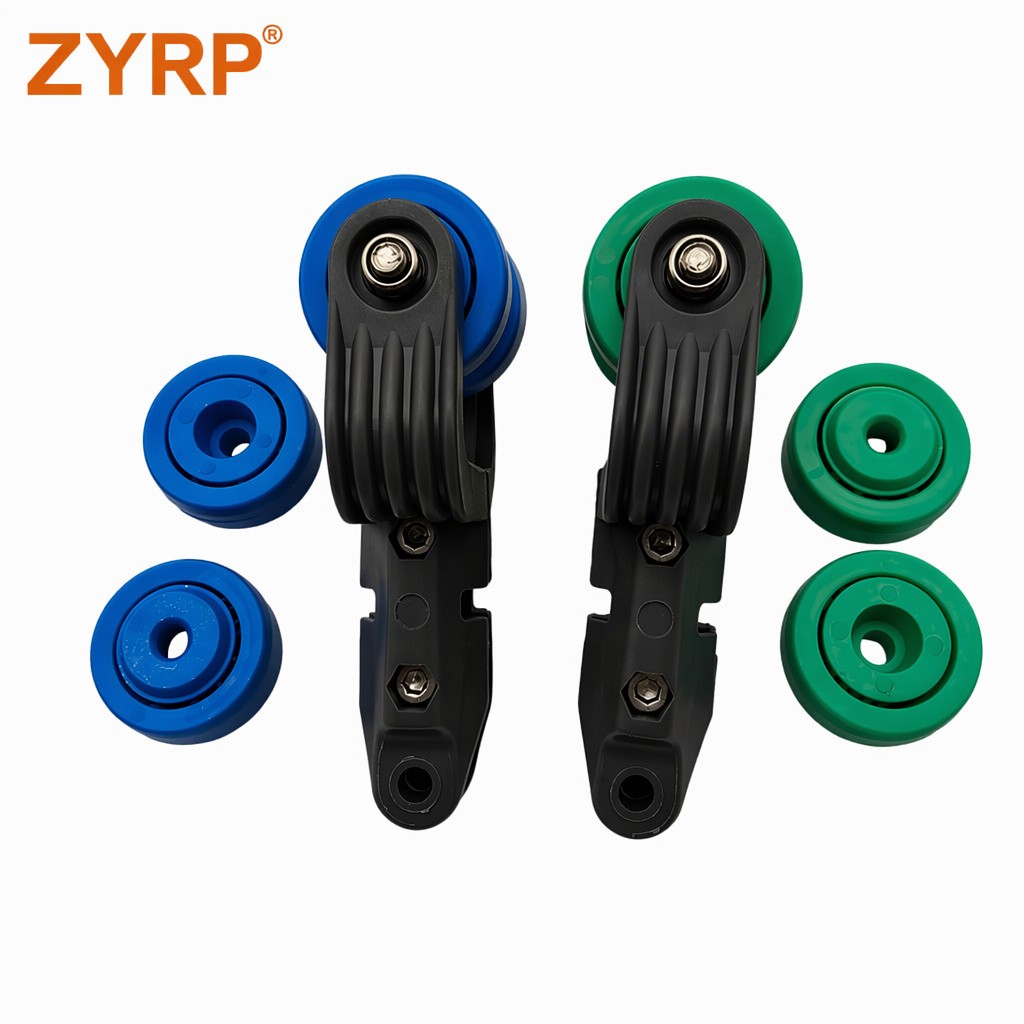

The POM wheels on the ZYRP-TRP1003 T-rail conveyor system are formulated with a proprietary self-lubricating additive package that ensures consistent, low-friction operation across the full temperature range of poultry processing (0°C to 60°C). The plastic trolley wheels feature a precision-ground crown profile that maximizes contact with the T-rail while minimizing rolling resistance — particularly important in compact trolley designs where the reduced wheelbase could otherwise increase yawing forces. The self-lubricating mechanism, based on uniformly dispersed PTFE and silicon-based internal lubricants, maintains a dynamic coefficient of friction of 0.10–0.13 under wet or dry conditions, eliminating the need for external grease and the contamination risks it poses. The wheel's wear characteristics have been optimized for the chicken suspension trolley's compact footprint, with accelerated testing confirming a wear life exceeding 15,000 operating hours before reaching the replacement diameter threshold. The POM material also exhibits excellent chemical resistance to peracetic acid, sodium hypochlorite, and quaternary ammonium sanitizers — ensuring that the wheels maintain their dimensional accuracy and self-lubricating properties throughout the product lifecycle. This poultry overhead conveyor trolley delivers the friction-reduction benefits of a bearing-equipped design through its advanced POM formulation, simplifying maintenance and reducing total cost of ownership.

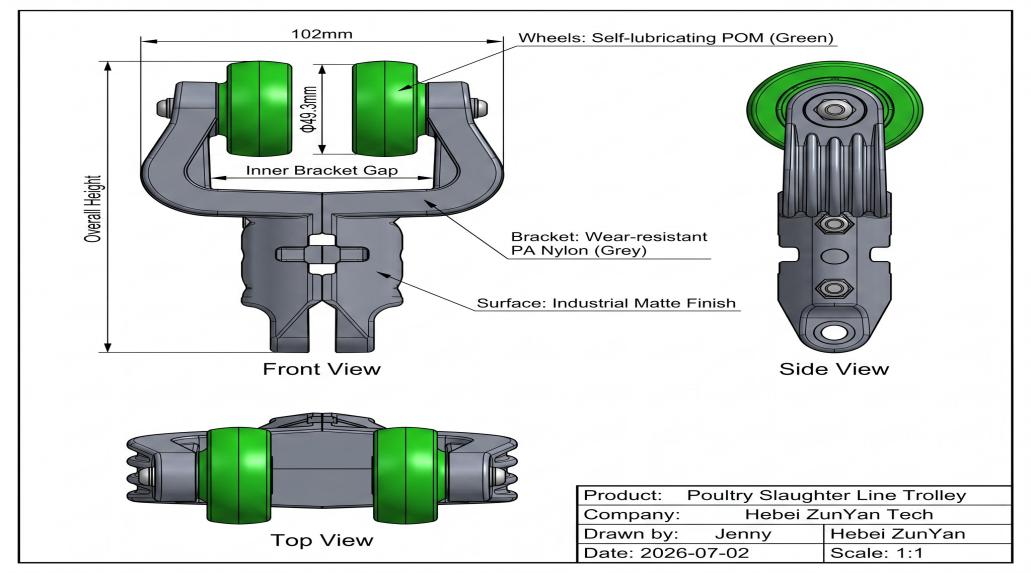

150mm Height and 102mm Width – Matching Specific Line Requirements

The specific dimensions of the ZYRP-TRP1003 plastic trolley (150mm H x 102mm W) address a niche requirement in the poultry industry: the need for a trolley that fits within the tight clearances of older or customized conveyor systems while still handling modern production loads. The 150mm height positions the shackle attachment point optimally for both manual and automated loading, while the 102mm width ensures compatibility with T-rail systems that may have slightly narrower opening tolerances due to wear or manufacturing variations. This T-rail conveyor system trolley also offers a lower center of gravity compared to taller models, reducing the moment arm that can amplify sideways forces during cornering and contributing to smoother product transport. For facilities retrofitting existing lines with newer, higher-capacity trolleys, the ZYRP-TRP1003 provides a drop-in replacement that requires no rail adjustments — a distinct advantage over larger models that may demand costly track modifications. The chicken suspension trolley's dimensions have been validated against the most common shackle and hanger configurations, ensuring universal compatibility with industry-standard accessories. This dimensional precision, combined with the reinforced bracket and self-lubricating wheels, makes the poultry overhead conveyor trolley a versatile solution for both new installations and modernization projects.

Application Scope – Versatile Deployment Across Processing Stages

The ZYRP-TRP1003 poultry overhead conveyor trolley is engineered for deployment across all processing stages, with its compact design making it particularly suited for space-constrained sections such as transfer stations, inspection platforms, and packaging areas where overhead clearance is at a premium. In primary slaughter lines, the T-rail conveyor system trolley's low profile ensures interference-free movement through scalding and defeathering modules, where steam and condensate can reduce effective headroom. In cut-up and deboning lines, the reinforced bracket provides the stability required for high-speed automated cutting, while the compact width allows closer spacing of portioning workstations. The plastic trolley also performs reliably in chilling tunnels and cold storage areas, where its corrosion-free construction eliminates rust drip contamination. For facilities processing mixed species (broilers, ducks, turkeys), the chicken suspension trolley offers the flexibility to accommodate different shackle styles and bird weights through simple adjustments to the mounting configuration. This versatility, combined with its space-saving footprint, makes the ZYRP-TRP1003 a preferred choice for plant engineers seeking a single trolley type that can serve multiple line sections with varying physical constraints.

Quality Assurance and Global Supply Support

Each ZYRP-TRP1003 poultry overhead conveyor trolley is manufactured under rigorous quality control protocols, with every unit subjected to dimensional inspection, material verification, and random load testing. The reinforced bracket design undergoes 100% visual and dimensional inspection to ensure that the additional ribbing and thickened sections are consistently molded to specification. With a minimum order quantity of 500 pairs and a monthly production capacity exceeding 50,000 units, ZYRP is a reliable plastic trolley supplier for both scheduled maintenance programs and large-scale line upgrades.

Summary – Compact Strength for Optimized Line Layouts

The ZYRP-TRP1003 poultry overhead conveyor trolley combines a space-efficient 150mm x 102mm footprint with a reinforced bracket design and self-lubricating POM wheels to deliver exceptional performance in tight-clearance and high-load processing environments. Its chicken suspension trolley dimensions enable higher line density and smoother cornering, while the T-rail conveyor system construction ensures corrosion resistance and maintenance-free operation. Backed by international certifications and ZYRP's proven supply chain, this plastic trolley is the ideal choice for processors seeking to maximize throughput within existing infrastructure constraints without compromising on durability or reliability.
