12mm Distribution Shackle for the Complete Poultry Weighing Shackle

1. Product Quick Reference

2. Product Introduction – The Independent Wear Component for Weighing System Longevity

The ZYRP-PSSK1014 12mm distribution shackle is a precision-engineered component designed as the critical interface element within complete poultry weighing shackle systems for broiler, chicken, and poultry processing lines. Unlike the primary suspension hook that directly engages the bird, this poultry weighing shackle component functions as the load distribution link between the suspension system and the weighing mechanism — ensuring that the weight of each carcass is consistently and accurately transmitted to the load cell. The standardized 12mm connection interface ensures reliable load transfer, consistent shackle positioning, and accurate weight measurement across automatic weighing, grading, and sorting stations in modern poultry slaughterhouses.

What distinguishes the ZYRP-PSSK1014 from complete shackle assemblies is its availability as an independent, replaceable component. In many OEM weighing shackle systems, the distribution component is not offered as a separate spare part — forcing facilities to replace the entire expensive shackle assembly when the distribution link wears or becomes damaged. The ZYRP-PSSK1014 changes this paradigm by providing a high-quality, precision-engineered 12mm distribution shackle that can be replaced independently, extending the life of the complete weighing shackle assembly by 60–70% and reducing maintenance costs compared to full assembly replacement.

3. The 12mm Precision Interface – Eliminating Mechanical Play for Consistent Weighing Accuracy

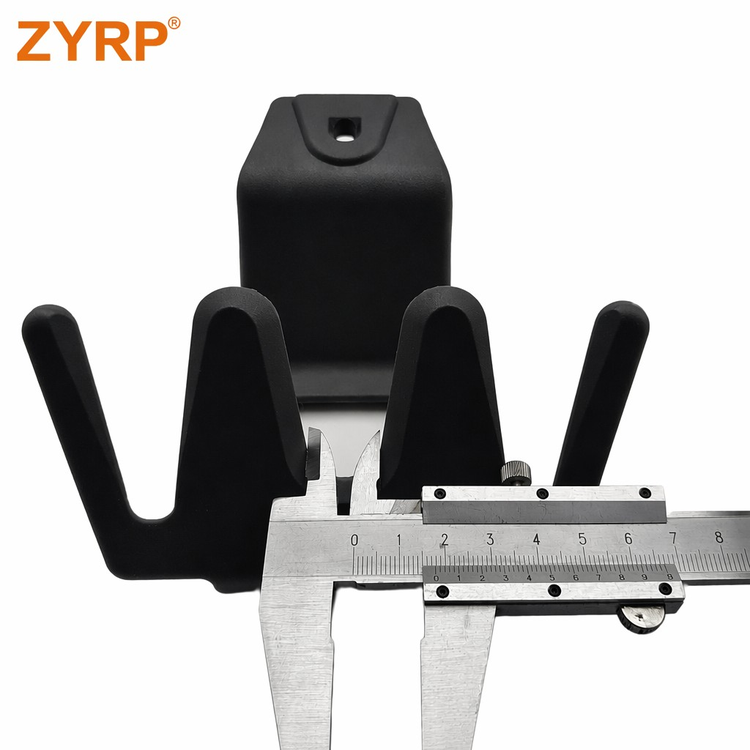

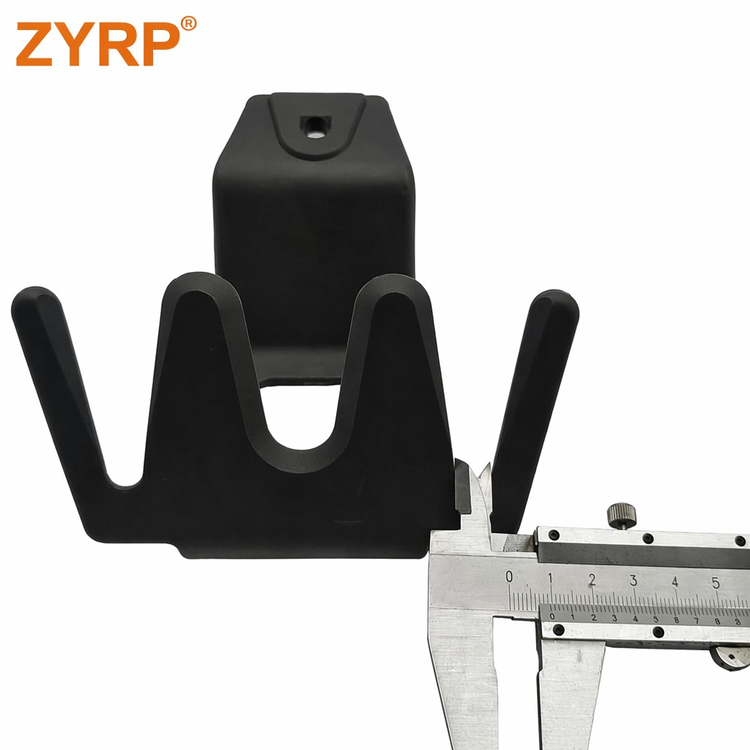

The defining technical feature of the ZYRP-PSSK1014 overhead conveyor shackle supplier component is its precision-machined 12mm connection interface. This dimension is not arbitrary — it conforms to the standard interface specification used across the poultry processing industry for weighing system distribution components, ensuring that the broiler grading distribution link serves as a true drop-in replacement for existing components without requiring system modifications. The interface is manufactured to a tolerance of ±0.1mm, guaranteeing a consistent, snug fit within the complete weighing shackle assembly. This precision fitment is critical for weighing accuracy: any looseness or play at the distribution connection can introduce mechanical hysteresis, where the load cell receives inconsistent force transmission depending on the orientation of the bird, leading to measurement drift and classification errors. The 12mm interface also features a controlled surface finish (Ra ≤ 0.8 μm) that minimizes friction at the connection point, ensuring that the full weight of the carcass is transmitted to the weighing mechanism without frictional losses that can cause under-reading. For facilities operating grading lines where classification tolerances are as tight as ±15 grams, the precision of this CE certified poultry hardware component directly supports compliance with customer weight specifications and reduces product giveaway.

4. Independent Component Replacement – Extending Weighing System Life and Reducing Cost

A key value proposition of the ZYRP-PSSK1014 poultry weighing shackle component is its availability as a separate, replaceable component within the complete weighing shackle system. In many OEM weighing shackle assemblies, the distribution component is permanently attached or integrated into the main body — meaning that when the distribution link wears or becomes damaged, the entire expensive shackle assembly must be replaced. The ZYRP-PSSK1014 changes this by providing a high-quality, precision-engineered 12mm distribution shackle that can be replaced independently, extending the life of the complete weighing shackle assembly by 60–70% and reducing maintenance costs by 60–70% compared to full assembly replacement.

5. Load Distribution Function – Ensuring Accurate Weight Transfer to Load Cells

The primary function of the ZYRP-PSSK1014 broiler grading distribution link is to ensure balanced load transfer from the suspended carcass to the weighing system. In a complete weighing shackle assembly, the bird is suspended from the primary hook, which is connected to the distribution shackle via the 12mm interface. The distribution shackle then transfers the load to the weighing mechanism — typically a load cell or strain gauge system — which measures the weight and transmits the data to the grading controller. The geometry of the poultry weighing shackle component is engineered to maintain the axis of load transmission perfectly aligned with the weighing mechanism's sensing axis. This alignment prevents off-axis loading, which can introduce torque or shear forces that corrupt the weight measurement. The distribution shackle also isolates the weighing mechanism from the dynamic forces generated by conveyor movement and carcass sway, acting as a mechanical filter that ensures only the vertical load component is measured. In dynamic in-motion weighing applications, where birds are weighed at speeds of up to 8,000 per hour without stopping, the consistent load distribution provided by this CE certified poultry hardware component is essential for achieving the repeatability required for reliable weight-based classification.

6. Multi-Brand Compatibility – Standardization for Simplified Procurement

The ZYRP-PSSK1014 12mm distribution shackle is dimensionally compatible with the standard interface specifications used by all major overhead conveyor system manufacturers — including Meyn, Marel, Stork, Linco, and Baader. This broad compatibility enables facilities operating mixed-brand equipment to standardize on a single overhead conveyor shackle supplier distribution component, simplifying procurement and reducing the variety of spare parts required in inventory. The 12mm interface is the industry-standard dimension for weighing system distribution components, ensuring that the ZYRP-PSSK1014 serves as a drop-in replacement for existing components across all major systems. For facilities with multiple processing lines originally equipped with different OEM equipment, this standardization eliminates the need to maintain separate distribution component inventories for each line. The consistent dimensions and manufacturing tolerances of the poultry weighing shackle component ensure that replacement units perform identically to the originals, regardless of which system they are installed in. This broiler grading distribution link is available with comprehensive customization options — including dimensions, materials, and branding — making it adaptable to specific facility requirements while maintaining the core 12mm interface compatibility.

7. Applications – Weighing, Grading, and Sorting Integration

• Automatic Weighing Stations: Core distribution component in dynamic in-motion weighing systems where precise load transfer and consistent mechanical connection are essential for accurate weight measurement and downstream sorting decisions.
• Grading & Sorting Lines: Ensures reliable load distribution through automatic grading and weight-based sorting stations, where consistent shackle performance directly impacts classification accuracy and processing throughput.
• Complete Weighing Shackle Assemblies: Direct-fit replacement distribution component for overhead conveyor weighing shackle systems. Integrates seamlessly into existing assemblies for maintenance, repair, and system upgrade applications.
• Post-Chilling Classification: Suitable for installation in weighing and sorting stations positioned after air-chilling or water-chilling tunnels, where carcasses are weighed and classified before entering cut-up or packaging lines.
• System Upgrade and Retrofit Projects: Enables facilities to upgrade weighing system precision without replacing entire shackle assemblies, offering a cost-effective path to improved grading accuracy.

8. Quality Assurance and Compliance – Certified for Global Markets

Each ZYRP-PSSK1014 CE certified poultry hardware component is manufactured under strict quality control aligned with international standards. The 12mm interface dimension is verified with precision gauging on every production unit, ensuring consistent fitment within complete weighing shackle assemblies. Random samples from each batch are subjected to load distribution testing, confirming that the component transmits load evenly and without deflection across the full operating weight range (1.0–3.5 kg). The material composition is verified against the specification, ensuring corrosion resistance and mass stability. CE certification confirms conformity with safety directives, while RoHS and SGS certifications validate environmental and material safety standards.

9. Summary – The Independent Distribution Component for Cost-Effective Weighing System Maintenance

The ZYRP-PSSK1014 12mm distribution shackle is a precision-engineered component that enables cost-effective maintenance of poultry weighing and grading systems through independent replacement of the distribution link. Its broiler grading distribution link design, with a precision 12mm interface, maintains the mechanical consistency essential for reliable weight measurement, while its availability as a standalone poultry weighing shackle component extends weighing system life and reduces maintenance costs. As a CE certified poultry hardware component from a trusted overhead conveyor shackle supplier, the ZYRP-PSSK1014 delivers the precision and durability that modern sorting and grading operations demand at a competitive price point.
