Poultry Slaughtering Line Overhead Conveyor Trolley for T Track

General Information

Professional Description – The T-Track Specialist for High-Speed Slaughter Lines

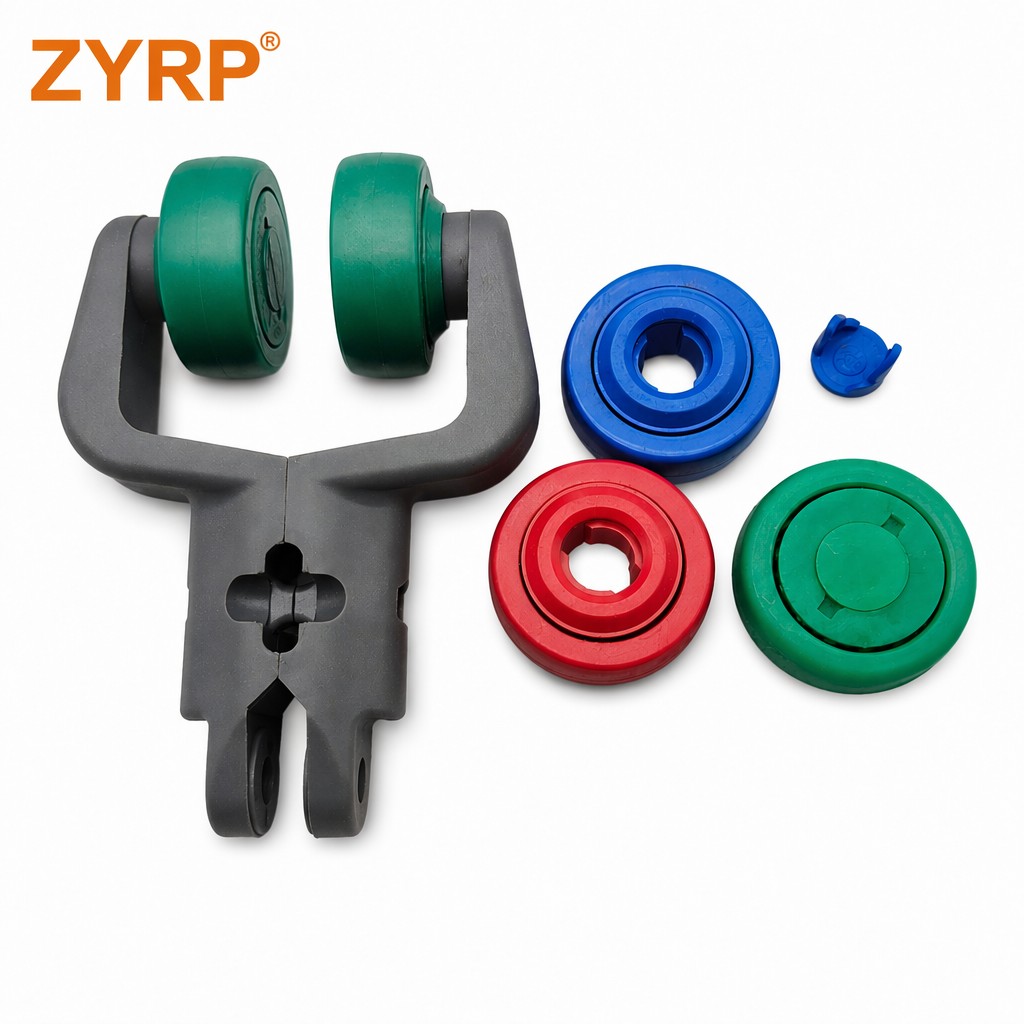

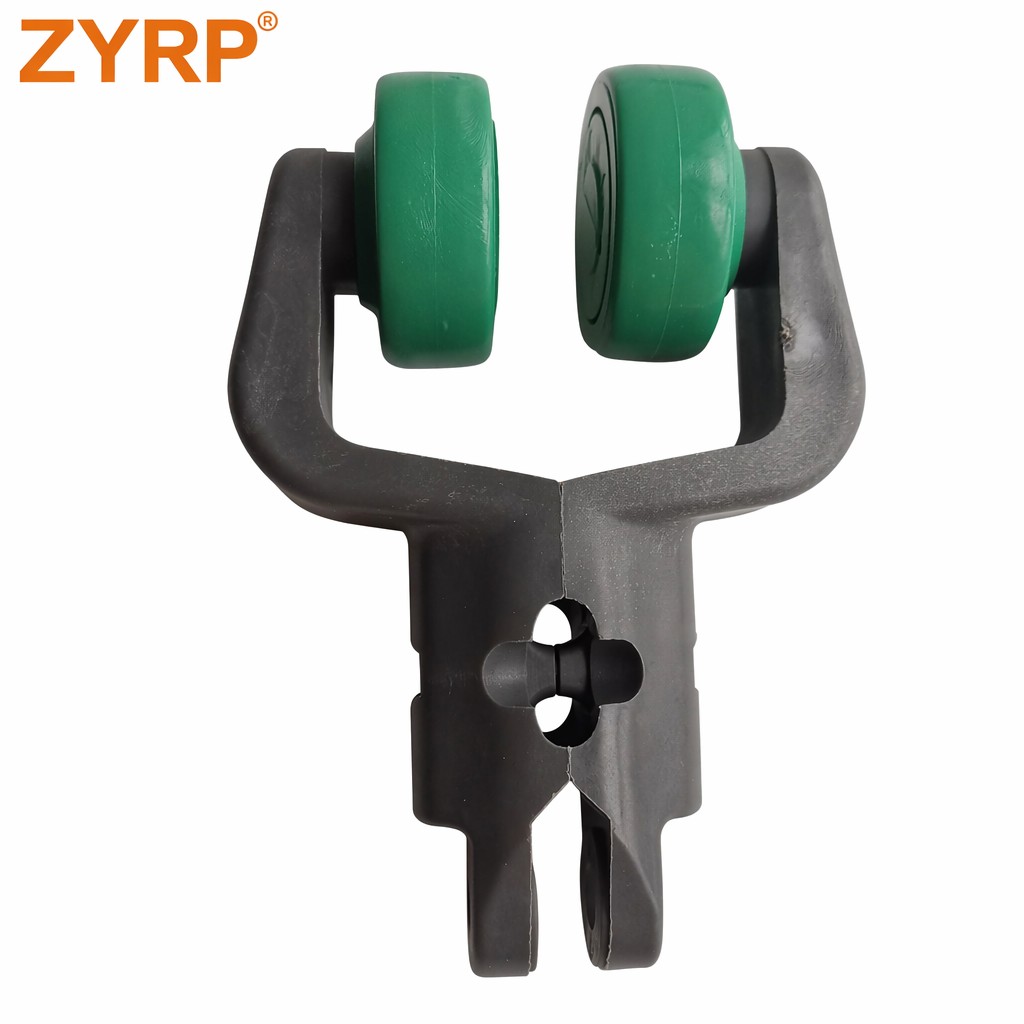

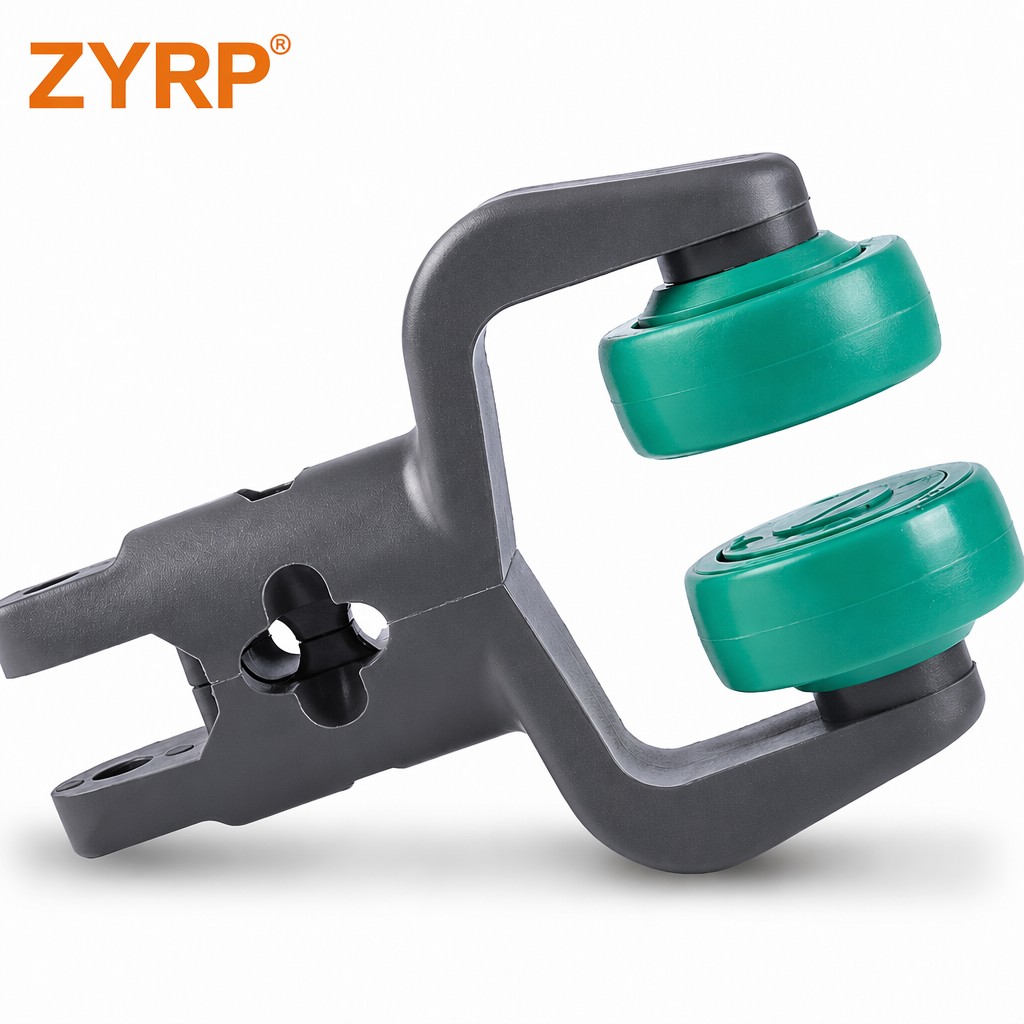

The ZYRP-TRP1011 poultry slaughtering line overhead conveyor trolley for T track is a purpose-engineered overhead conveyor trolley T track designed specifically for the dimensional and dynamic demands of standard 50x50x5mm T-rail systems in high-throughput poultry slaughterhouses. Unlike universal trolleys that employ a generic rail interface, this slaughtering line conveyor trolley features a precision-ground wheel profile and a bracket geometry that are optimized specifically for the T-track cross-section — ensuring maximum contact area, minimal lateral play, and consistent tracking performance even on long conveyor runs with multiple switches and elevation changes. This plastic trolley poultry processing delivers the reliability and positioning accuracy required for facilities processing 8,000–12,000 birds per hour, where even minor tracking deviations can compound into significant spacing errors or product collisions.

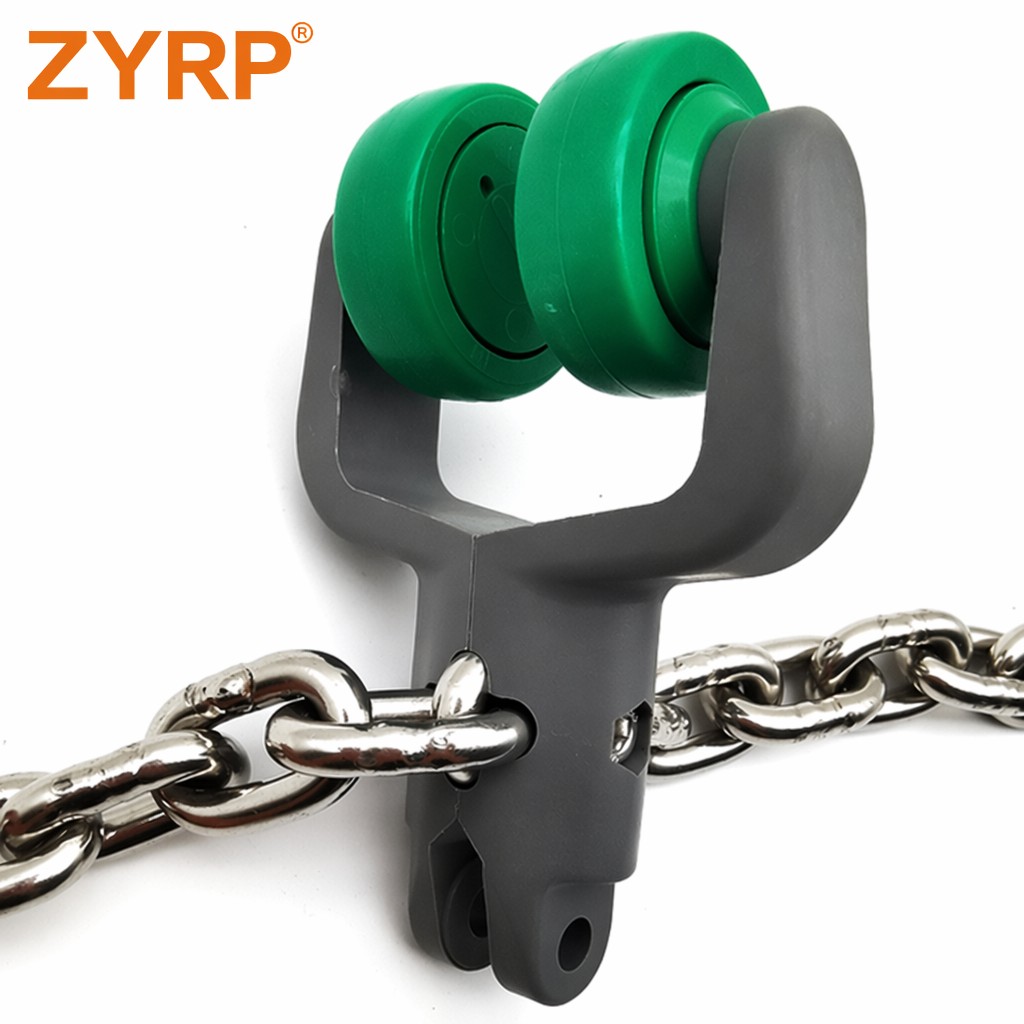

Manufactured with a high-strength synthetic bracket and self-lubricating POM wheels, the ZYRP-TRP1011 offers a compelling alternative to traditional metal trolleys that are prone to corrosion, galling, and accelerated wear on T-rail contact surfaces. The POM material's inherent lubricity, combined with a proprietary additive package that enhances its bearing properties under load, maintains a dynamic coefficient of friction of 0.10–0.13 against the steel T-rail — approximately 60% lower than unlubricated metal-on-metal contact. This overhead conveyor trolley T track is available in two distinct sub-models: TRP1011-1, optimized for standard broiler processing lines with moderate speeds (up to 10 m/min), and TRP1011-2, featuring a reinforced bracket and enhanced wheel durometer for high-speed lines (up to 16 m/min) handling heavier bird loads. Both variants maintain full compatibility with universal 25.4x8mm conveyor chains and are backed by CE, RoHS, and SGS certifications, ensuring regulatory compliance for global export markets.

T-Track Interface Precision – Optimized Geometry for Consistent Tracking

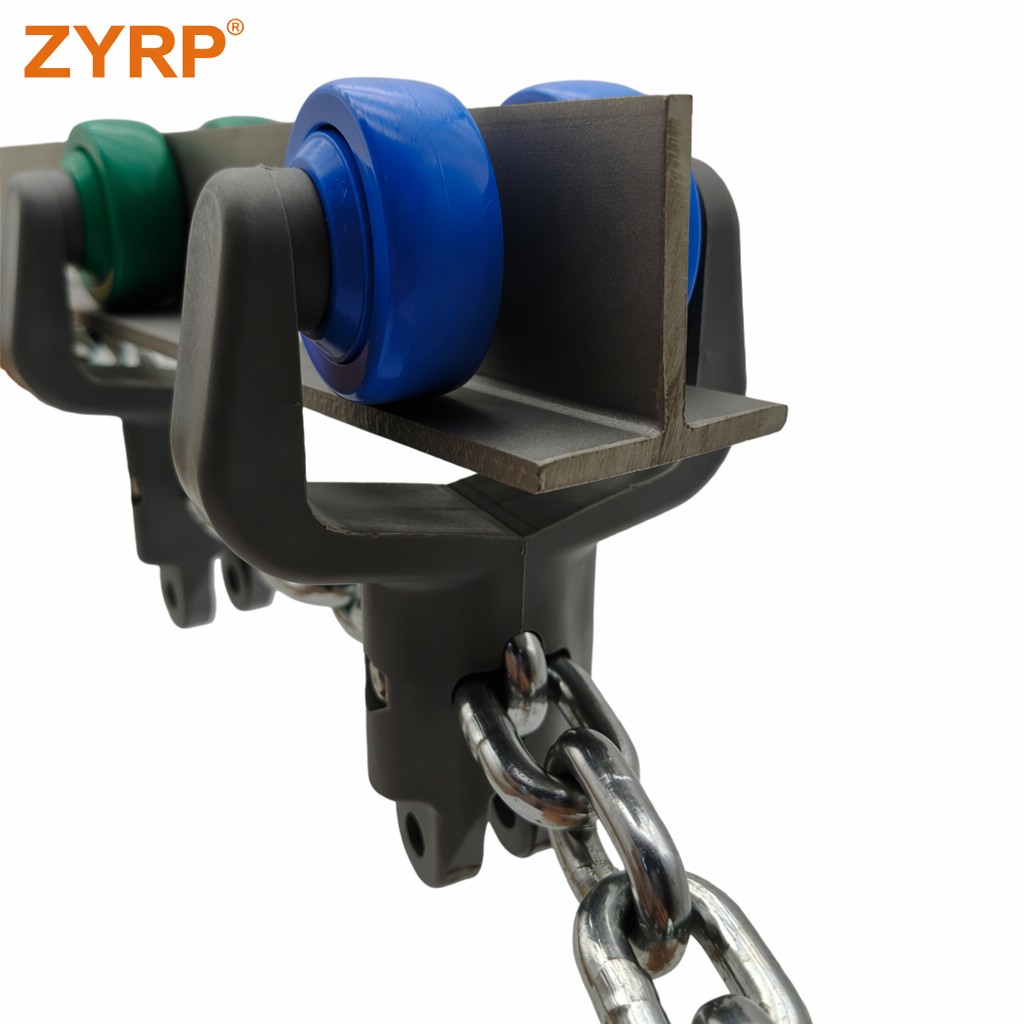

The ZYRP-TRP1011 poultry slaughtering line overhead conveyor trolley for T track derives its superior tracking stability from its meticulously engineered rail interface. The POM wheels incorporate a concave crown profile that matches the T-rail's running surface with a contact band width of 8–10 mm — wide enough to distribute load evenly yet narrow enough to minimize rolling resistance. The bracket's inner guide surfaces are precisely dimensioned to maintain a controlled lateral clearance of 0.8–1.2 mm on each side of the T-rail web, providing sufficient freedom for smooth cornering while preventing excessive side-to-side oscillation that can cause product sway or chain misalignment. This overhead conveyor trolley T track also features an integrated anti-lift lug that engages the underside of the T-rail head, preventing the trolley from derailing during incline transitions or when subjected to upward chain forces. For facilities operating with worn or slightly deformed T-rails, the plastic trolley poultry processing's generous wheel radius and self-centering geometry accommodate minor rail surface irregularities without compromising tracking performance. In comparative testing on a 300-meter loop with 14 curves, the ZYRP-TRP1011 demonstrated a lateral deviation of less than ±2.5 mm at the shackle attachment point — a significant improvement over the ±6–8 mm typical of generic trolley designs.

Sub-Model Strategy – TRP1011-1 vs. TRP1011-2 for Optimized Line Performance

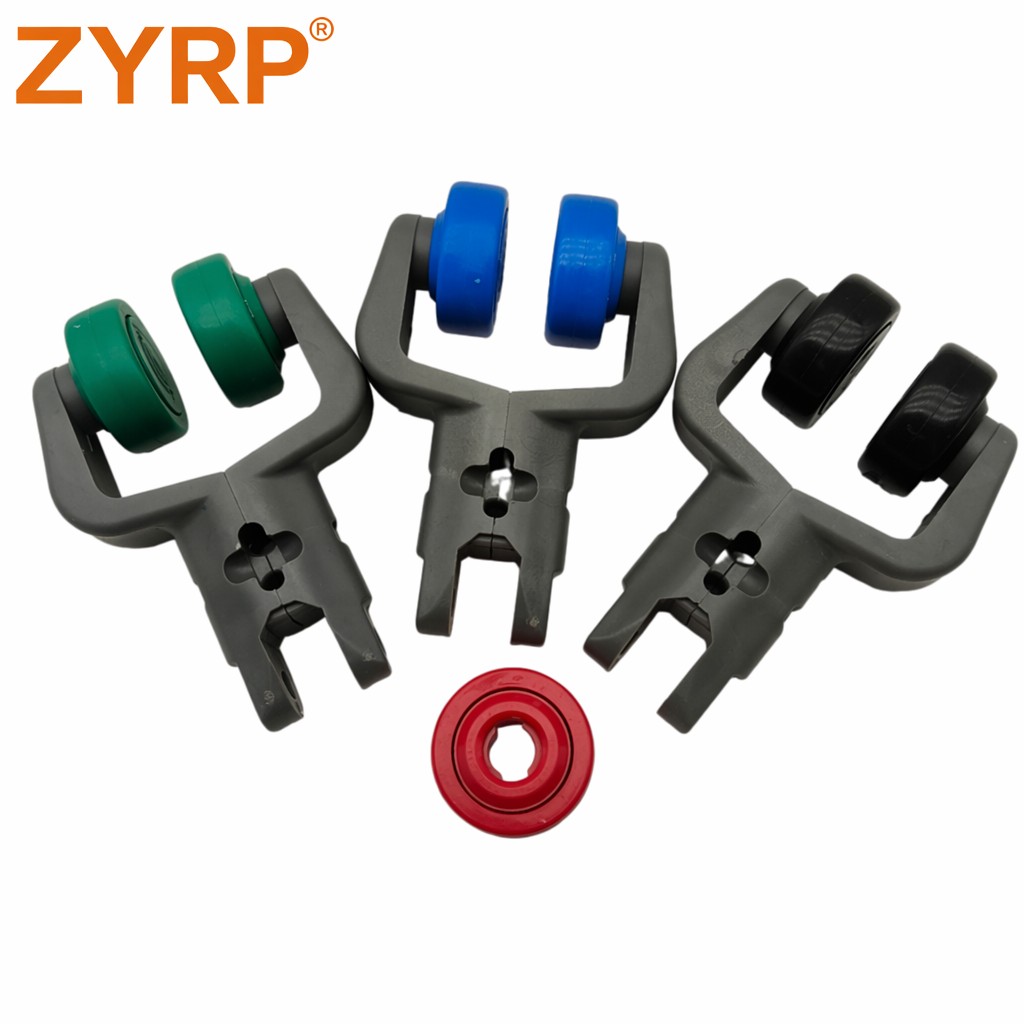

The ZYRP-TRP1011 is offered in two carefully calibrated sub-models, enabling processors to match trolley specifications to their specific line conditions. The TRP1011-1 variant is configured with a standard-durometer POM wheel (Shore D 78–80) and a lightweight bracket optimized for broiler lines operating at 8–10 m/min with individual bird weights up to 3.0 kg. This version delivers the lowest rolling resistance and is particularly suited for long, straight conveyor sections where minimal friction is the primary efficiency driver. The TRP1011-2 variant, in contrast, features a higher-durometer POM wheel (Shore D 85–87) and a reinforced bracket with additional ribbing, engineered for high-speed lines operating at 12–16 m/min with bird weights up to 4.0 kg.

Self-Lubricating POM Material – Dynamic Friction Performance Under Load

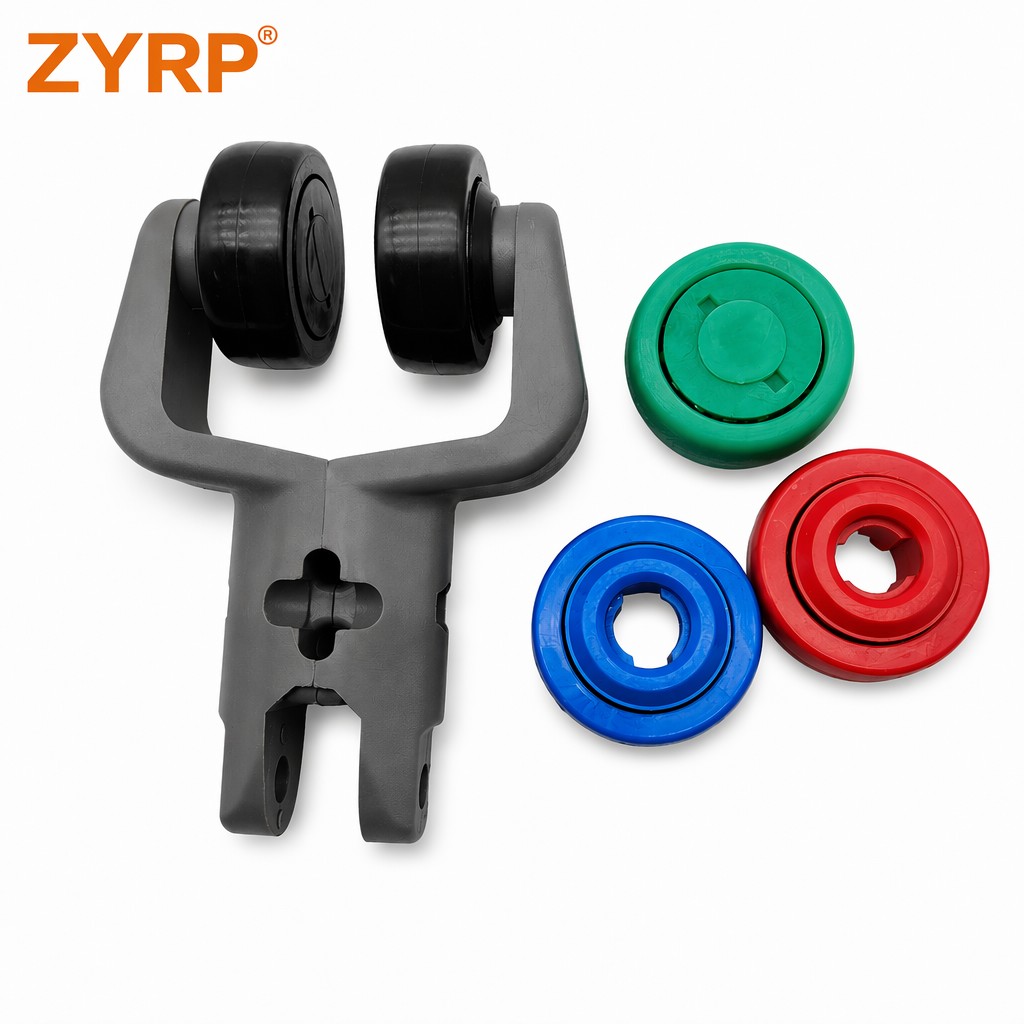

The POM (polyoxymethylene) material selected for the ZYRP-TRP1011 plastic trolley poultry processing represents a specialized grade formulated for the unique tribological demands of T-track operation. Unlike standard acetal that relies solely on surface lubricity, this grade incorporates uniformly distributed PTFE micro-particles and a proprietary internal lubricant that migrates to the wear surface during operation, maintaining a consistent boundary film even under high contact pressures (exceeding 3 MPa at the wheel-rail interface). This self-lubricating mechanism ensures that the poultry slaughtering line overhead conveyor trolley for T track maintains its low friction characteristics throughout its service life, without the performance degradation that occurs when surface-applied lubricants are washed away during sanitation cycles. In accelerated wear testing at 15 m/min under a 25 kg dynamic load, the POM wheels on the ZYRP-TRP1011 exhibited a diameter loss of only 0.12 mm after 10,000 hours of continuous operation — significantly outperforming standard acetal grades and rivaling the wear resistance of hardened steel wheels without the corrosion vulnerability.

Bracket Engineering – Structural Integrity for Continuous High-Cycle Operation

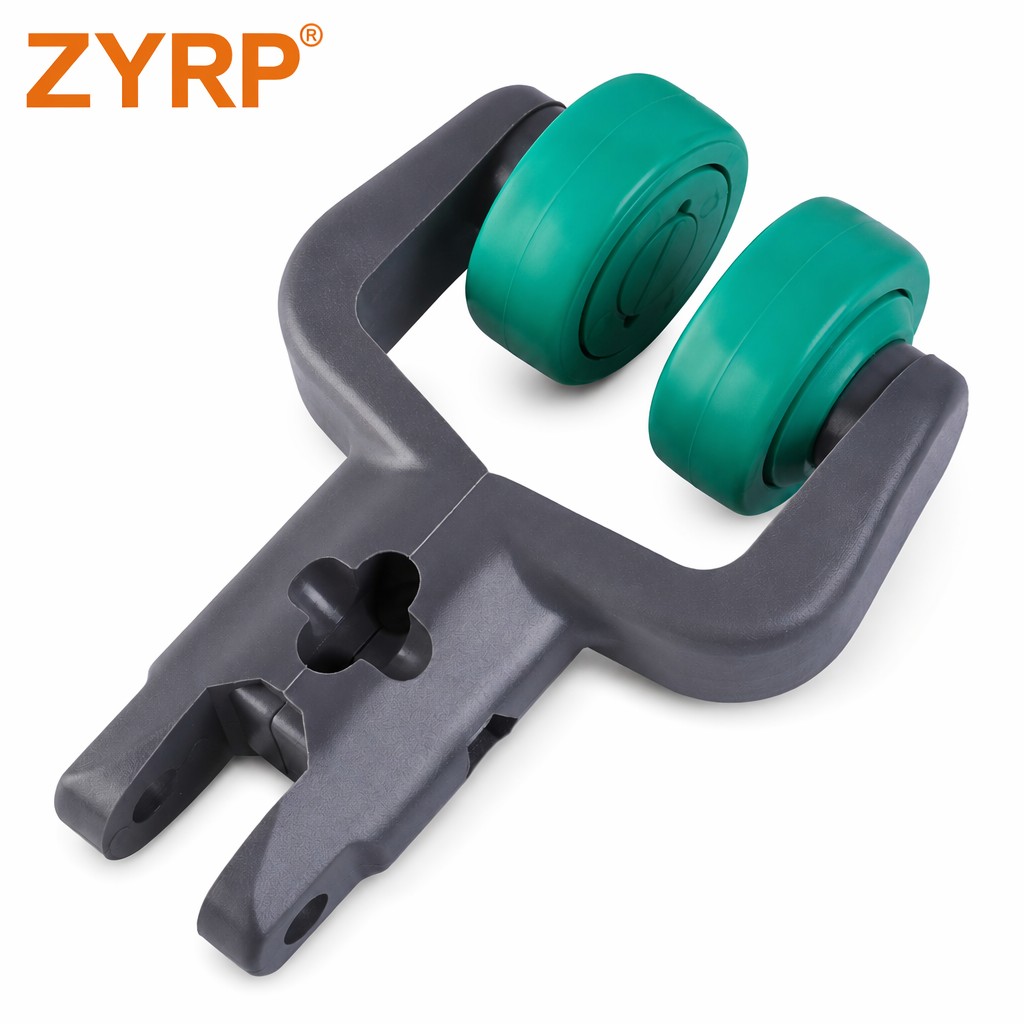

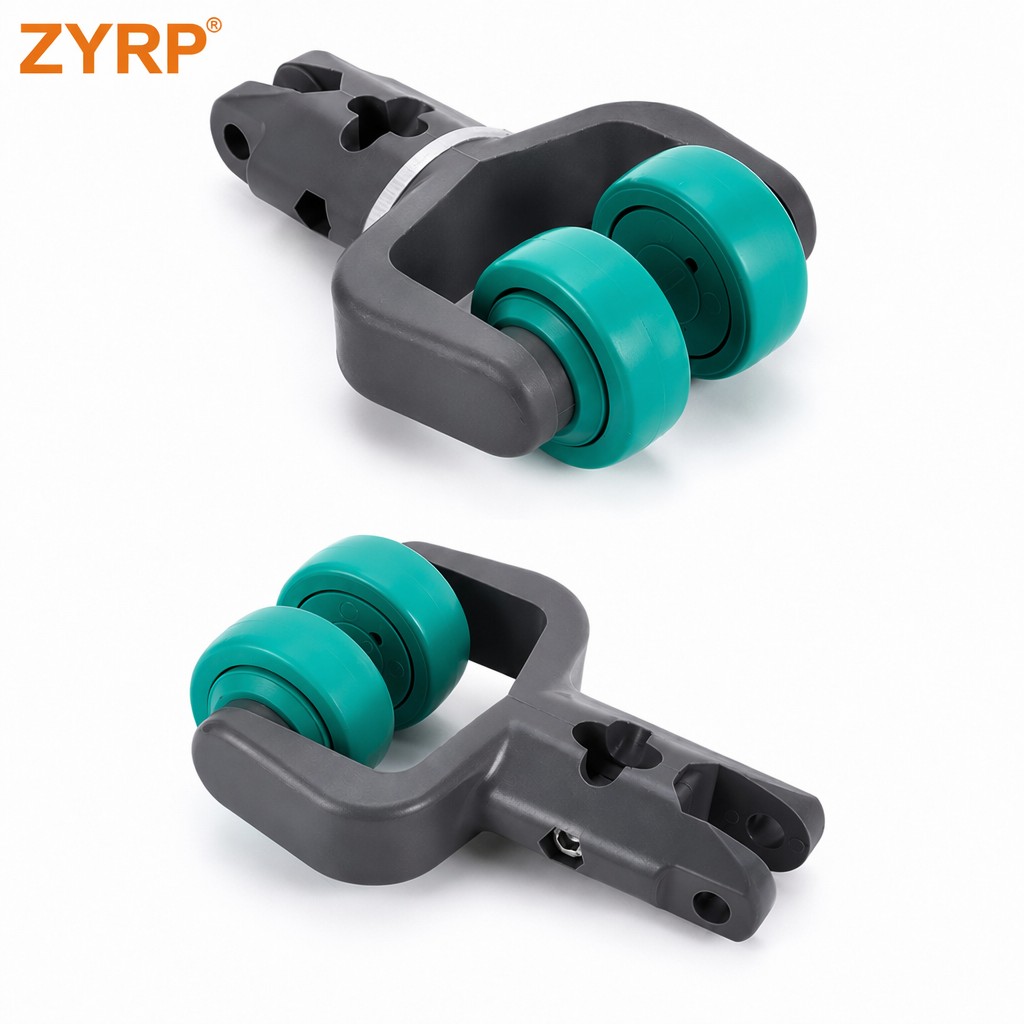

The bracket of the ZYRP-TRP1011 overhead conveyor trolley T track is injection-molded from a glass-reinforced nylon compound that delivers exceptional strength-to-weight performance. The material formulation includes 30% short glass fibers, increasing the bracket's flexural modulus to 8.5 GPa and its tensile strength to 160 MPa — approximately triple the strength of unreinforced nylon. This slaughtering line conveyor trolley bracket is engineered with FEA-optimized rib structures that channel load paths efficiently from the axle mounting points to the top suspension lug, preventing stress concentration that could lead to fatigue cracking. The bracket's open architecture also facilitates rapid drainage of washdown water and sanitizing chemicals, eliminating hidden crevices where bacteria can proliferate. The top lug incorporates a hardened stainless steel wear insert that interfaces with the overhead conveyor hanger, extending the service life of this critical contact point. For facilities operating with automated line tensioning systems, the plastic trolley poultry processing bracket is designed to accommodate the axial loads generated by chain take-up mechanisms without deformation, maintaining consistent shackle spacing and product positioning.

Application Scope – From Primary Slaughter to Cold Storage

The ZYRP-TRP1011 poultry slaughtering line overhead conveyor trolley for T track is engineered for deployment across the full spectrum of poultry processing operations. In primary slaughter areas, the trolley's precise tracking and low friction ensure consistent bird spacing through scalding, defeathering, and evisceration stations, reducing the incidence of product-to-product contact that can cause cross-contamination. In chilling tunnels, the overhead conveyor trolley T track's corrosion resistance and dimensional stability maintain reliable operation despite continuous exposure to condensing humidity and sprayed chilled water. In cut-up and portioning lines, the sub-model selection (TRP1011-1 vs. TRP1011-2) allows processors to optimize trolley characteristics for the specific speed and load conditions of each section. The slaughtering line conveyor trolley also performs reliably in cold storage holding areas, where its synthetic construction eliminates the rust drip contamination that plagues metal alternatives. For facilities processing ducks, turkeys, or other poultry species outside the standard broiler weight range, ZYRP offers customized bracket and wheel configurations upon request — ensuring that the plastic trolley poultry processing solution is precisely matched to the operational requirements.

Quality Assurance and Supply Chain Reliability

Each ZYRP-TRP1011 overhead conveyor trolley T track is manufactured under ISO 9001-aligned quality control protocols. Every production batch undergoes dimensional verification on critical features — including wheel crown radius, bracket lateral clearance, and lug engagement geometry — to ensure consistent tracking performance. With a minimum order quantity of 500 pairs and a monthly production capacity exceeding 50,000 units, ZYRP is a dependable plastic trolley poultry processing supplier for both scheduled maintenance programs and large-scale line upgrades. The company's global logistics network supports delivery to over 30 countries with lead times of 15–25 working days, backed by comprehensive technical documentation and responsive after-sales support.

Summary – Precision T-Track Performance for Demanding Slaughter Lines

The ZYRP-TRP1011 poultry slaughtering line overhead conveyor trolley for T track combines an optimized T-track interface, self-lubricating POM wheels, and a choice of sub-models to deliver precision tracking and low-friction performance in high-throughput slaughter operations. Its overhead conveyor trolley T track geometry ensures consistent product positioning, while the plastic trolley poultry processing construction eliminates corrosion and minimizes maintenance. Backed by international certifications and ZYRP's proven supply chain, this slaughtering line conveyor trolley is the trusted choice for processors seeking to maximize line efficiency and reduce total cost of ownership.
